vECTOR 1350

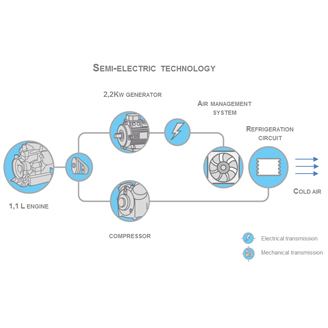

Combines the simplicity of belt technology with the efficiency of all-electric technology.

BROUCHURE
BROCHURE CITY LINE
Product Video

Light weight and ease of use for national and international long haul deliveries

BENEFITS:

• Simple to use
• Easy to maintain
• Lightweight

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)

Capacity on engine power 0°C13 112 W

Capacity on engine power -20°C8 304 W

Capacity on electrical stand by 0°C7998 W

Capacity on electrical stand by -20°C7 614 W

Diesel High speed 18°C/-18°C9 300 W

Standby 18°C/-18°C5 100 W

Airflow
(High speed engine operation 1750 round/Min)

(AMCA 21085) m3/hr5 433

Weight
(Including battery)

R (Road version)645 kg

S (Road and Stand-by version)690 kg

T (Low Noise version)690 kg

Engine

ModelCT 3-69TV

Displacement1123 cm3

n° of cylinders3

Maintenance Interval1500 hrs

Compressor

Model05 K4

Displacement400 cm3

n° of cylinders4

Electrical Stand by Motor

Voltage / Phase / Frequency400/3/50

Rating5,5 kW

Refrigerant

TypeR-404A

Charge5,1 kg

Sound pressure (At high speed)

Standard76 dBA

Low Noise73 dBA

Sound Power Lwa

R (Road version)102 db

S (Road and Stand-by version)102 db

T (Low Noise version)100 db

Unit

Dimensions (D x W x H)2050 x 430 x 2227 mm

Body openingL 1700 x H 1170 mm
