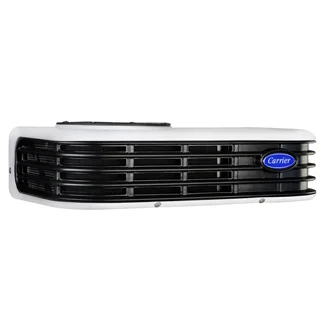

XARIOS 200


BENEFITS
- Extra-flat evaporator to allow extra loading
- High reliability and longer product lifetime due to brushless fans and advanced electronic controller
Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)
MXV 850/MXS 850
Capacity on road at 2400rpm 0°C (W)2 400/2 415
Capacity on road at 2400rpm -20°C (W)1 360/1 470
Capacity on road at 1000rpm 0°C (W)1 820/1 440
Capacity on road at 1000rpm -20°C (W)930/980
Standby capacity (W)1 280/1 300
Standby capacity (W)620/580
Heating Capacity
MXV 850/MXS 850
Heating system 18°C/-18°C (W)2 200/2200
Airflow
(High speed engine operation)
MXV 850/MXS850
(AMCA 21085) m3/hr730770
Weight
Road and standby condenser53 kg
EvaporatorMXV 85017 kg
EvaporatorMXS 85019 kg
Compressor
Road compressorStandby compressor
ModelCarrier 130PS130
Displacement131 cm312,7
n° of cylinders6Rotary
Electrical Stand by Motor
Voltage / Phase / Frequency
230/1/50 Hz
400/3/50 Hz
230/1/60 Hz
Rating990 W
Refrigerant
TypeR-404A
Charge1,4 kg
Sound Pressure
High speed54,6 dBA
Unit
Dimensions (D x W x H)480 x 864 x 232 mm
