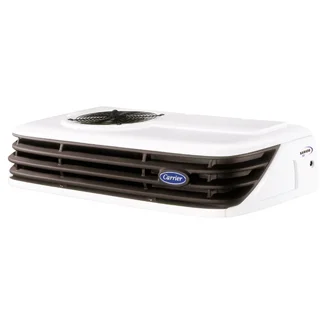

XARIOS 350MT MULTI TEMP

BROCHURE

BENEFITS

• Extra-flat evaporator to allow extra loading
• High reliability and longer product lifetime due to brushless fans and advanced electronic controller

Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)

 MXS 850/MXS 600/MXV 850

Capacity on road at 2400rpm 0°C (W)3 000/2290/2769

Capacity on road at 2400rpm -20°C (W)1730/1390/1550

Standby capacity (W)1860/1610/1570

Standby capacity (W)910/730/740

Heating Capacity

Heating system 18°C/-18°C (W)3 100

Airflow
(High speed engine operation)

(AMCA 21085) m3/hr 820/730/750

Weight

Road condenser weight42 kg

Road and standby condenser85 kg

Evaporator MXS 85019 kg

Evaporator MXS 60015 kg

EvaporatorMXV 85017 kg

Compressor

 Road compressor/Standby compressor

Model    Carrier 150/Carrier 150

Displacement  147 cm3/147 cm3

n° of cylinders   6/6

Electrical Stand by Motor

Voltage / Phase / Frequency

230/1/50 Hz
400/3/50 Hz
230/3/50 Hz

Rating Depends on configuration

Refrigerant

TypeR-404A

Charge1,6 kg

Sound Pressure

High speed57 dBA

Unit

Dimensions (D x W x H)505 x 1125 x 238 mm
